100m 100hz High Accuracy Distance Sensor

PTGL-100-SKD 905nm Laser Ranging Module Introduction

The PTGL-100-SKD high accuracy distance module is a compact, high-speed 905nm laser ranging sensor built for precise dynamic distance measurement. It integrates core superior specifications including a 100-meter maximum range, 100Hz high refresh rate, and outstanding 3-centimeter high measurement accuracy, ensuring fast and dependable distance data output in variable outdoor conditions.

Utilizing mature TOF ranging principle and Class 1 eye-safe 905nm laser, the 100m distance sensor features high safety and strong ambient light anti-interference ability, supporting stable all-day operation for aerial and industrial devices.

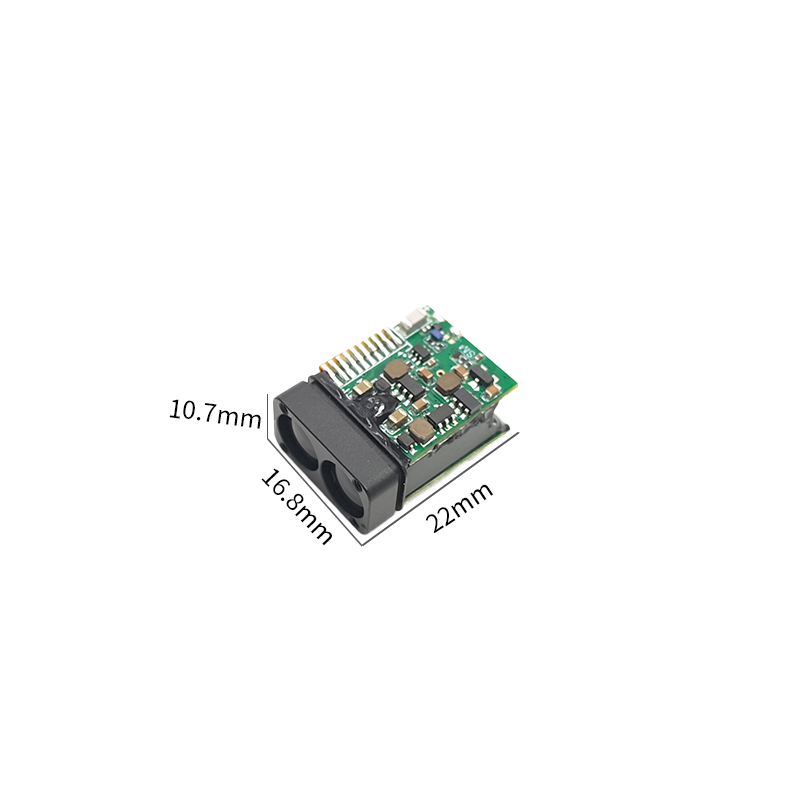

In terms of core parameters, the 100hz distance sensor operates steadily under DC 3.3-5V wide voltage input with ultra-low power consumption. Its mini lightweight structure, sized 10.7*16.8*22mm and weighing merely 6g, perfectly fits space-limited precision equipment such as mini UAV.

Equipped with standard UART communication interface, high resolution laser distance sensor achieves easy wiring, quick data transmission and convenient secondary development. Moreover, it works reliably within -20℃ to 60℃ temperature range, possessing excellent environmental adaptability for complex field working scenarios.

The PTGL-100-SKD high precision distance sensor is specially optimized for UAV pod mounting applications. The 100Hz high-frequency sampling effectively captures rapid altitude changes during UAV flight, realizing real-time obstacle avoidance, accurate altitude calibration and terrain profiling. Its lightweight design brings almost no extra load, avoiding impacts on UAV endurance and flight stability.

Contact for Product Datasheet and Price
