Anti-drone 7km Laser Rangefinder Sensor

Short Description:

An anti-drone 7km laser rangefinder sensor is designed to detect, track, and measure the distance to drones or other aerial objects over long distances.

Product Model: ETYS-70X

Measurement Range: 30-7000m Rangefinder Module

Measurement Accuracy: +/-1m

Blind Area: 30m

Divergence Angle: ≤0.5mard

Laser Class: Class I

Laser Type: 1535nm Laser Distance Sensor

Voltage: 9-15V

Output Mode: RS422 communication/UART

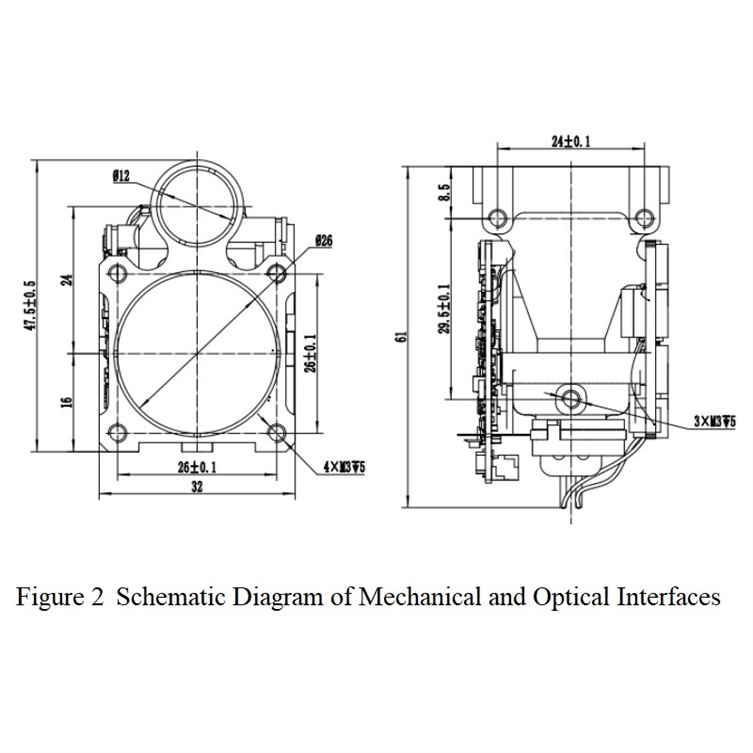

Size: 70mm*48mm*32mm

Weight: 53g

Receiving Aperture: 25mm

Working temperature: -40-60℃

Application: Anti-drone Rangefinder Sensor

If you have specific anti-drone range finder sensor requirements, feel free to ask!


Product Detail

Product Tags

Here are some key points about the ETYS-70X drone laser rangefinder sensor:

Key Features:

1. Range: Capable of measuring distances up to 7 kilometers.

2. Precision: High precision ranging, often with accuracy within a few meters.

3. Detection: 7km laser rangefinder module can detect small targets like drones, which are typically smaller and more maneuverable than traditional aircraft.

4. Integration: Often integrated with other systems such as radar, cameras, and command and control systems for comprehensive drone detection and neutralization.

5. Safety: Uses 1535nm laser rangefinder sensor to ensure eye safety for operators and bystanders.

Applications:

1. Security and Surveillance: Used by military, law enforcement, and security agencies to protect critical infrastructure, borders, and sensitive areas.

2. Airport Security: To prevent unauthorized drones from entering restricted airspace around airports.

3. Event Security: For large public events, concerts, and sports venues to ensure the safety of attendees.

4. Industrial Security: Protecting industrial sites, power plants, and other high-value assets from drone threats.

Seakeda Example Products:

ETYS-70X: Known for military laser rangefinder sensor that can be adapted for anti-drone applications.

PTF-LD200X: Provides IP68 robust 20km rangefinder module that can be used in various environments.

PTYS-20X: Specializes in 2km drone laser rangefinding solutions, suitable for long range and high accuracy applications.
