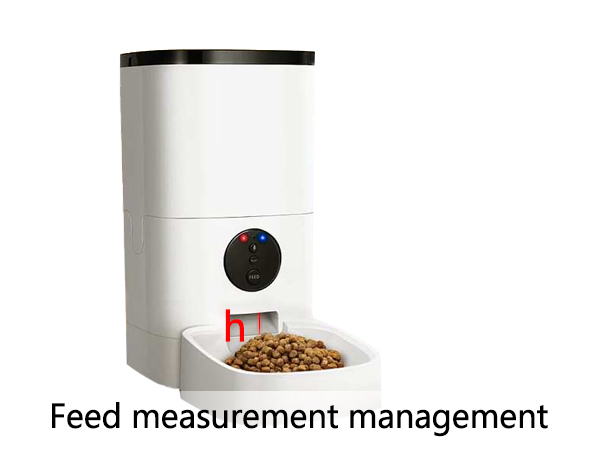

Feed Measurement Management System Distance Module

Feed measurement management system laser distance module is a specialized ranging sensor used in agricultural or industrial feed management systems to accurately measure the level, volume, or distance of feed material in storage bins, silos, hoppers, or conveyors. The distance measurement module enhances precision and automation by providing real-time, non-contact measurements.

What is a Laser Distance Measurement Module?

A laser distance module uses ToF or phase-shift laser technology to measure the distance between the industrial laser distance sensors and the surface of the feed material. It emits a focused laser beam, measures the time it takes for the reflection to return, and calculates the distance with 1mm high accuracy for 20m.

Role in Feed Measurement Management Systems

1. Real-Time Level Monitoring

Continuously tracks the feed level in silos or bins. Prevents overfilling or running out of feed.

2. Volume Calculation

Combines distance data with bin geometry such as cylindrical and rectangular to calculate actual feed volume.

3. Automated Feeding Control

Distance measurement module sends data to control systems to trigger feeding schedules or adjust conveyor speeds based on remaining feed.

4. Alerts and Alarms

Triggers low-level alerts with laser distance module when feed drops below a threshold.

5. Data Logging Reporting

Integrates with SCADA or farm management software e.g., FarmBot, DairyComp, or custom ERP systems. Provides historical data for analysis and optimization.

6. Non-Contact Operation

No moving parts or physical contact with feed to reduces wear, clogging, and maintenance. Laser distance measureing module is ideal for dusty, abrasive, or sticky feed materials.

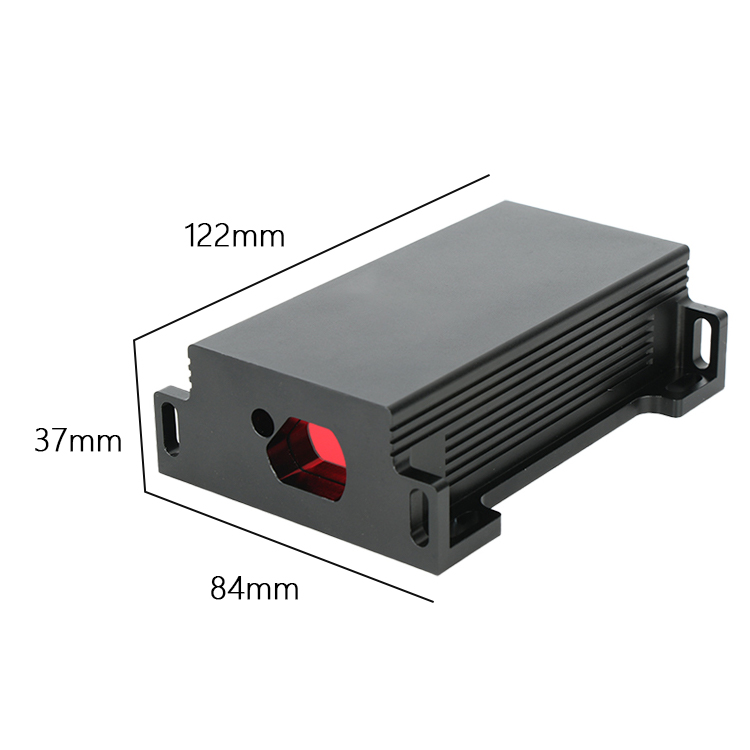

Key Features of a Laser Distance Module for Seakeda JCJMSS:

1. High Accuracy: ±1–3 mm resolution depending on testing conditions.

2. Long Range: Up to 0.03–100/150 meters which is suitable for large silos.

3. Weather and Dust Resistant: IP67 rating for harsh environments.

4. Modular Design: Easy integration into existing control systems.

5. Communication Interfaces: UART, RS232, RS485, Analog, Modbus RTU, Ethernet, Bluetooth, TTL and USB.

Common Applications:

Livestock feed bunkers such as dairy, poultry and swine

Grain silos and feed mills

Automated feed dispensers in barns

Conveyor belt load monitoring

Installation Tips:

1. Mount the high precision laser distance sensor at a stable, elevated position above the feed surface.

2. Ensure line-of-sight is clear no obstructions like pipes or agitators.

3. Avoid direct sunlight or reflective surfaces that may cause interference.

4. Calibrate regularly industrial laser distance sensor especially after installation or material changes.

If you’re designing or upgrading an feed measurement management system, consider integrating a robust, waterproof laser distance sensor with real-time communication and integration capabilities.

Let Seakeda know if you’d like a wiring diagram, sample code, or product recommendations!
