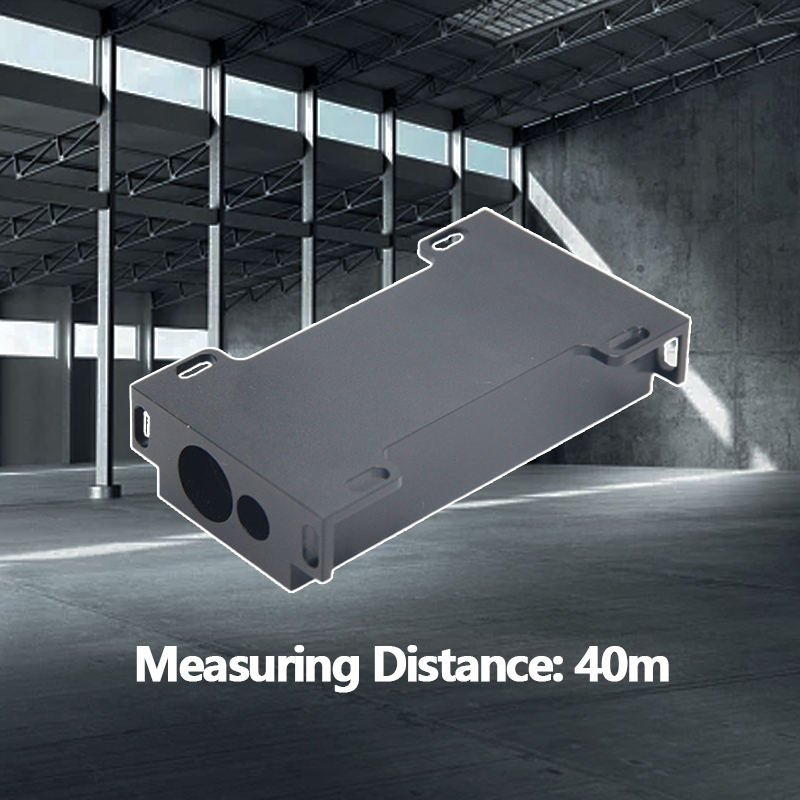

Railway Monitoring 40m Laser Distance Sensor

The 40m laser distance sensor is a high precision, non-contact measurement device designed specifically for use in railway infrastructure monitoring applications. These laser distance sensors are commonly used to ensure the safety, integrity, and performance of tracks, bridges, tunnels, and other critical rail assets.

Key Features of a 40m Laser Distance Sensor:

1. Measurement Range: Up to 40 meters, ideal for monitoring track alignment, bridge deflection, tunnel clearance, and overhead equipment e.g., catenary systems.

2. High Accuracy: Typically ±1 mm to ±2 mm accuracy, depending on 40m laser distance module testing conditions, ensuring reliable detection of even minor structural changes.

3. Fast Response Time: Millisecond-level update rates allow real-time monitoring of dynamic movements such as train passage or thermal expansion.

4. Non-Contact Measurement: No physical contact with the rail or structure reduces wear and allows continuous operation without interference.

5. Robust Environmental Resistance:

IP54 / IP67 laser distance sensor or higher protection against dust and water.

Operates reliably in extreme temperatures -20°C to +50°C.

Resistant to vibration, shock, and electromagnetic interference, crucial in harsh railway environments.

6. Integrated Data Output:

Analog 4–20mA or digital outputs RS485, Modbus, RS232, USB and Bluetooth.

High resolution laser distance sensor can be integrated into SCADA systems or railway monitoring platforms.

7. Mounting Flexibility: Designed for fixed installation on rails, bridges, signal poles, or gantries with adjustable brackets for optimal alignment.

8. Self-Diagnostics Alarm Functions: Built-in diagnostics detect 40m laser distance sensor faults or obstructions; can trigger alarms if deviation exceeds preset thresholds.

Typical Applications in Railway Monitoring:

1. Track Geometry Monitoring: High resolution laser distance sensor detects gauge, level, alignment, and cross-level deviations.

2. Bridge Viaduct Deflection Monitoring: Measures vertical movement during train passage or due to aging/thermal stress.

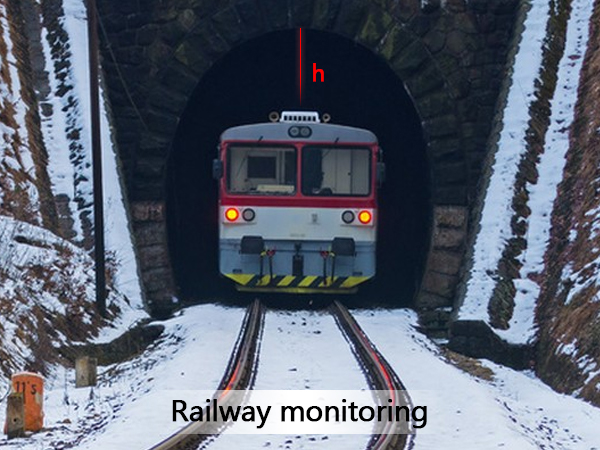

3. Tunnel Clearance Checks: Ensures rolling stock fits safely within clearance zones.

4. Overhead Catenary System Monitoring: Tracks contact wire height and position relative to the pantograph.

5. Settlement Deformation Detection: Identifies ground subsidence or structural shifts over time.

Example Models for Reference:

Seakeda M95 Series: https://www.seakeda.com/short-range-40m-high-accuracy-distance-measurement-sensor-product/

JCJMLASER Laser Sensors: https://jcjmlaser.aliexpress.com/store/1105288408

JRT M88B-40M: https://lasermeasure.en.alibaba.com

A 40m laser distance sensor is an essential tool in modern railway infrastructure monitoring, providing precise, real-time data to prevent accidents, reduce maintenance costs, and extend asset lifespan. Its reliability and durability make it a cornerstone of predictive and condition-based maintenance strategies in rail transport systems.

If you’re selecting a 40m laser distance module, let us know your specific application e.g., track inspection, bridge monitoring, and Seakeda can recommend suitable 40m laser distance sensor based on specs, budget, and integration needs.
