Truck Height Measurement Laser Device

A truck height measurement sensor is a specialized laser ranging device used to accurately measure the vertical height of trucks, trailers, or other large vehicles. The laser height measurement device is commonly deployed at weigh stations, toll plazas, gate entrances, and in logistics hubs to ensure compliance with infrastructure restrictions such as bridge clearances, tunnel heights, and overhead obstructions.

Common Applications:

1. Highway and Bridge Safety: Preventing accidents due to over-height vehicles.

2. Logistics Warehousing: Checking if trucks can safely enter facilities or loading docks.

3. Toll Plazas Border Crossings: Automated vehicle screening.

4. Construction Zones: Monitoring equipment and material transport.

5. Railroad Grade Crossings: Ensuring clearance for rail vehicles.

Example Use Case:

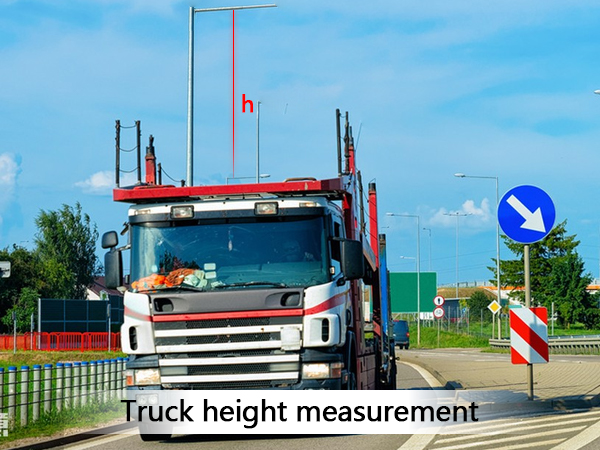

A semi-truck approaches a tunnel with a 13-foot clearance. A laser height measurement device mounted above the entrance scans the truck’s roof. If the height exceeds 13 feet, an alarm sounds, and the gate remains closed until the vehicle turns around—preventing potential damage and safety hazards.

Considerations When Choosing Laser Height Measurement Device:

1. Accuracy ±1mm typical with non contact height measurement

2. Operating range up to 10–20 meters depending on laser measurement sensor model

3. Mounting height and alignment

4. Data output format: analog, digital, RS232, RS485 or USB

5. Compliance with local regulations

Let Seakeda know if you’d like help selecting a specific laser height measurement sensor model, understanding installation guidelines, or integrating it with other systems!
