High Speed 10Hz Laser Rangefinder TOF Sensor Serial Port
Product Introduction
40m range TOF sensor is ideal for industrial automation, object detection, AGV, robotics, measurement and monitoring systems. A laser measuring device that uses time-of-flight (TOF) technology to measure the distance between the sensor and an object. The sensor emits a laser beam and measures the time it takes for the beam to bounce back from the object, which is then used to calculate the distance. This optical sensor has a high speed of 10Hz, meaning it can take 10 distance measurements per second. It also has a serial port, which allows it to communicate with other devices such as microcontrollers or computers. With an IP54 rating, the laser range finder is durable enough to withstand harsh environments. It's designed with accuracy and reliability in mind, ensuring you get the most accurate readings every time.
Features
High Accuracy-1mm
Fast Response Time-10Hz

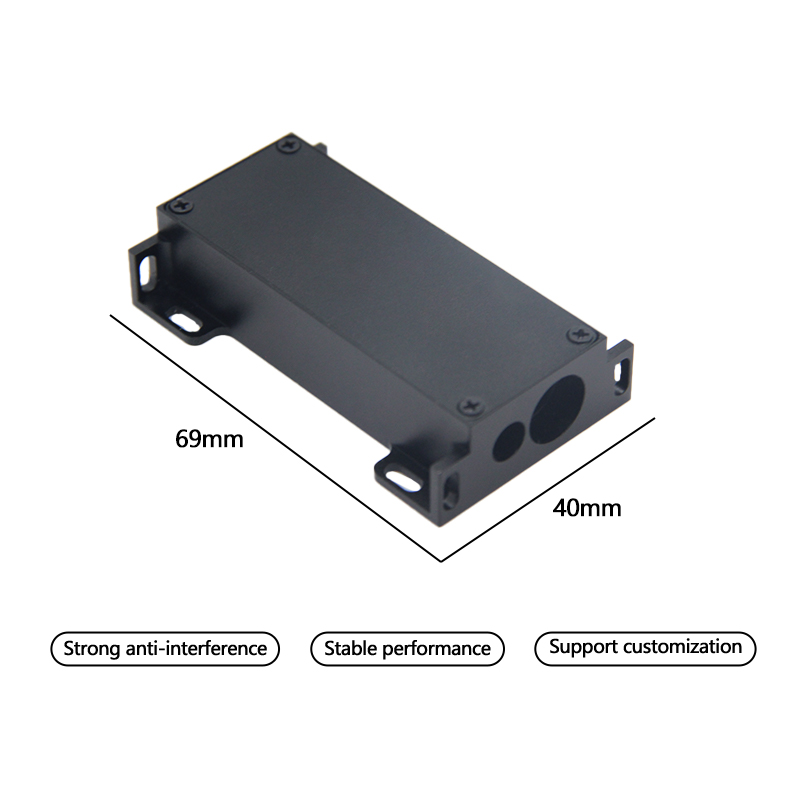

Small Size-69*40*16mm
Long Measuring Range-40m

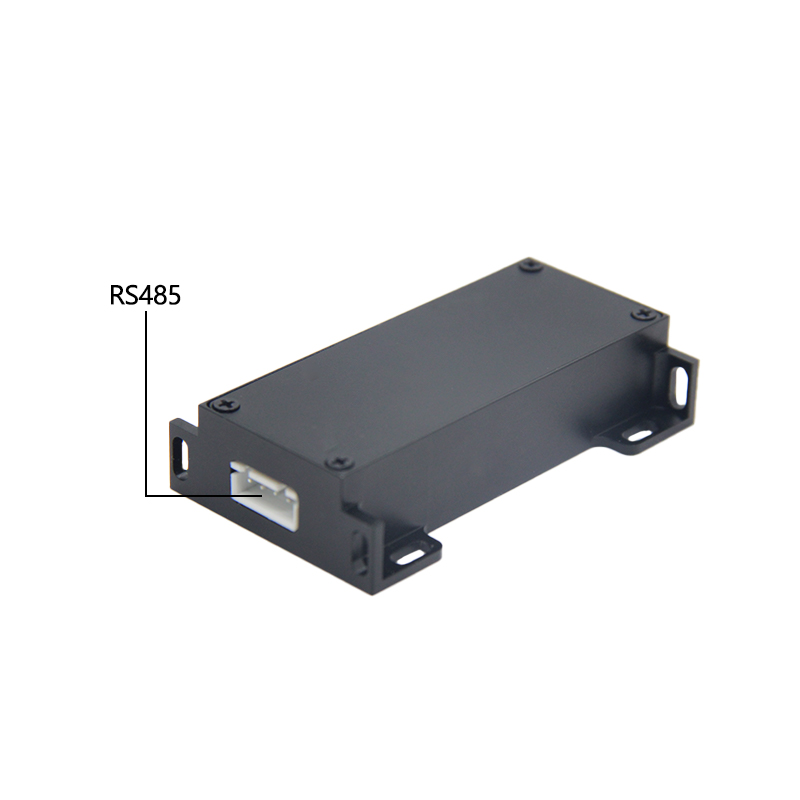

Interface-RS485
Our laser sensor can be easy communication with connected PLC, Arduino and Raspberry PI, enabling seamless integration into existing systems. Whether you're working on a large manufacturing project or a small engineering task, this versatile sensor has you covered.
Parameters
| Model | M93 | Frequency | 10Hz |
| Measuring Range | 0.03~40m | Size | 69*40*16mm |
| Measuring Accuracy | ±1mm | Weight | 40g |
| Laser Grade | Class 2 | Communication Mode | Serial Communication, UART |
| Laser Type | 620~690nm,<1mW | Interface | RS485(TTL/USB/RS232/ Bluetooth can be customized) |
| Working Voltage | 5~32V | Working Temperature | 0~40℃(Wide temperature -10 ℃ ~ 50 ℃ can be customized) |
| Measuring Time | 0.4~4s | Storage Temperature | -25℃-~60℃ |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customized
4. 60m can be customized
Application
Laser ranging sensors provide efficient solutions that can provide productivity and safety in industrial automation, automotive, agriculture, robotics, construction and other industries. The sensor's ability to provide high-accuracy distance measurements makes it ideal for applications that require precision and efficiency. For example, in robotics, precise distance measurement is required to navigate and locate in the environment, and to execute command tasks efficiently. Object detection in tunneling and mining increases accuracy and reduces the risk of human error. In the automotive industry, laser ranging sensors are widely used in automatic driving systems such as parking assistance and collision avoidance. By providing accurate distance measurements, these sensors make driving safer and more comfortable. As the technology continues to develop, we can expect to see more innovative uses for laser distance sensors in the future.
