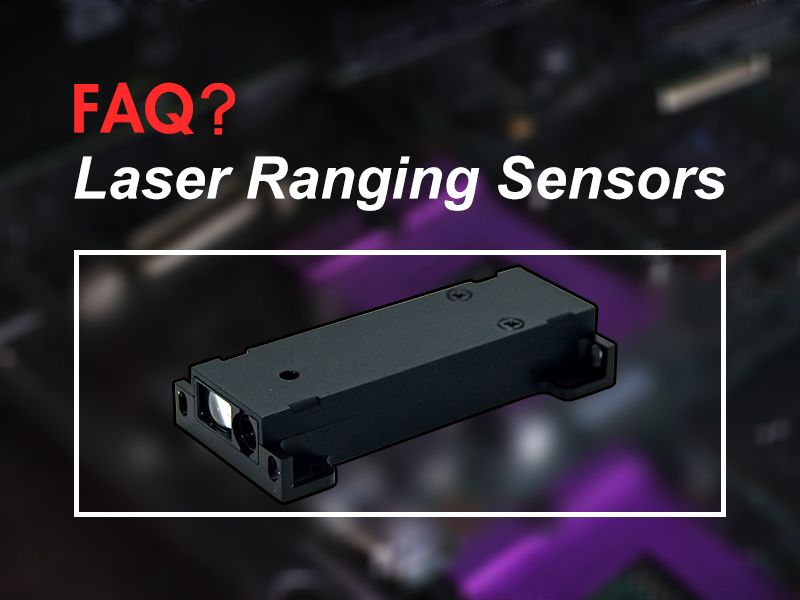

FAQ About Laser Distance Sensors

Whether it is construction industry, transportation industry, geological industry, medical equipment or traditional manufacturing industry, advanced equipment is a powerful support for various industries in terms of speed and efficiency. Laser ranging sensor is one of the widely used devices.

Customers may encounter the following common problems when choosing and using laser distance sensors.

1. What is the principle of Seakeda laser sensor?

Seakeda laser sensors are based on the principles of phase, time of flight, and pulse ranging. We will provide selection suggestions based on your project needs.

2. Is the Seakeda laser sensor safe for the human eye?

Seakeda sensor belongs to visible laser class II and invisible safety class I laser, and the laser power is less than 1mW.

3. What objects can the Seakeda Laser Distance Sensor measure?

All objects that are opaque, not highly reflective surfaces can be measured.

4. What type of host can communicate with Seakeda Laser Ranging Sensor?

Seakeda laser sensors are programmable and can be applied to MCU, Raspberry Pi, Arduino, industrial computer, PLC, etc.

5. What should I pay attention to when using the laser rangefinder sensor?

First, please use the current and voltage according to the instructions; Second, please avoid the sensor from being damaged by external force, static electricity and other prohibited items; Finally, please do not use the laser directly at the sun; or the measurement surface is very shiny, such as glossy materials below 10m .

6. What is the difference in accuracy and power consumption between green and red laser distance sensors?

The power consumption of green light is about 2~3 times that of red light, the accuracy of green light is slightly worse than that of red light, about (±3 + 0.3*M)mm, and the maximum measuring range of green light is 60M.

7. Can the Seakeda Laser Distance Sensor measure moving objects?

The Seakeda sensor can measure moving targets. The higher the moving speed of the object, the higher the measurement frequency of the laser ranging sensor can be selected.

8. How long does it take for the Seakeda laser measurement sensor to automatically enter sleep mode after it is activated?

The laser sensor does not go to sleep.

9. Can the Seakeda laser sensor be disassembled by itself?

No, if you need to disassemble the sensor, please contact our technical staff for communication.

10. How to maintain the laser ranging sensor?

For the protection and cleaning of the laser ranging sensor lens, please refer to the camera lens. Under normal circumstances, please gently blow off a small amount of dust; such as

If you need to wipe, please use the special lens paper to wipe the surface in one direction; if you need to clean, please use a cotton swab dipped in a little pure water to wipe several times in one direction, and then dry it with an air blower.

For more questions about the selection and use of laser distance sensors, you can send an inquiry to contact us, and we will arrange professional technicians to answer for you.
