IP67 Waterproof Distance Sensor Outdoor High Precision

Short Description:

JCJM series laser measurement sensor is a new generation of ranging equipment, with unique design, IP67 dust-proof and waterproof protection level, powerful, durable, specially designed for the industrial measurement industry. There are multiple fixing holes on the housing of the distance measuring sensor, which can be easily installed.

Measuring range: 0~100m

Accuracy:+/-3mm

Interface: RS232

Protection: IP67

Seakeda is a high-tech enterprise focusing on the research and development, production and sales of laser distance sensors. It has an independent research and development department and production base, independent innovation, and distance measurement products have independent intellectual property rights and various certifications. With strong technical advantages and professional sales strength, we maintain cooperation with different universities, research institutes, industrial enterprises, equipment manufacturers, industrial automation and IOT users in the world.

Send us Email to get the technical specifications and quote.


Product Detail

Product Tags

Product Introduction

100m laser ranging sensor adopts the phase method laser distance measure technology, which has superior measurement accuracy and extremely high stability, and realizes high-precision, non-contact, and uninterrupted measurement. IP67 protection level, it can still maintain excellent measurement stability and reliability in harsh outdoor environments. The standard industrial interface RS232, RS485/TTL, etc. can be customized, and with the operating software, a full range of industrial automation control can be realized.

Features

1. RS232 interface output, can customize a variety of interfaces, TTL, RS485, Bluetooth, etc.
2. DC 6~36V stable and ultra-wide power supply voltage
3. IP67 protection grade, dustproof and waterproof
4. Support multiple networking

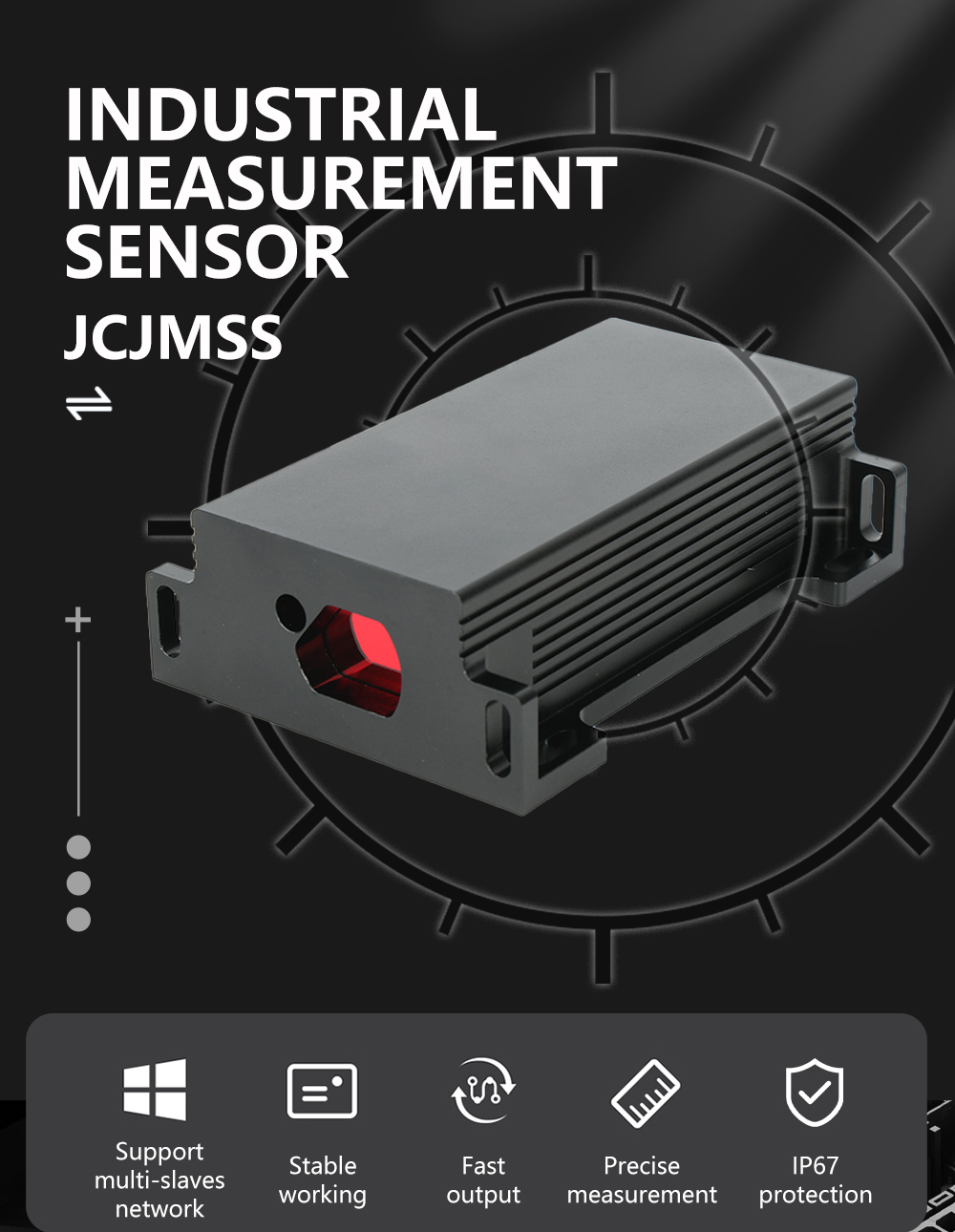

1. Accurate Distance Measurement Sensor

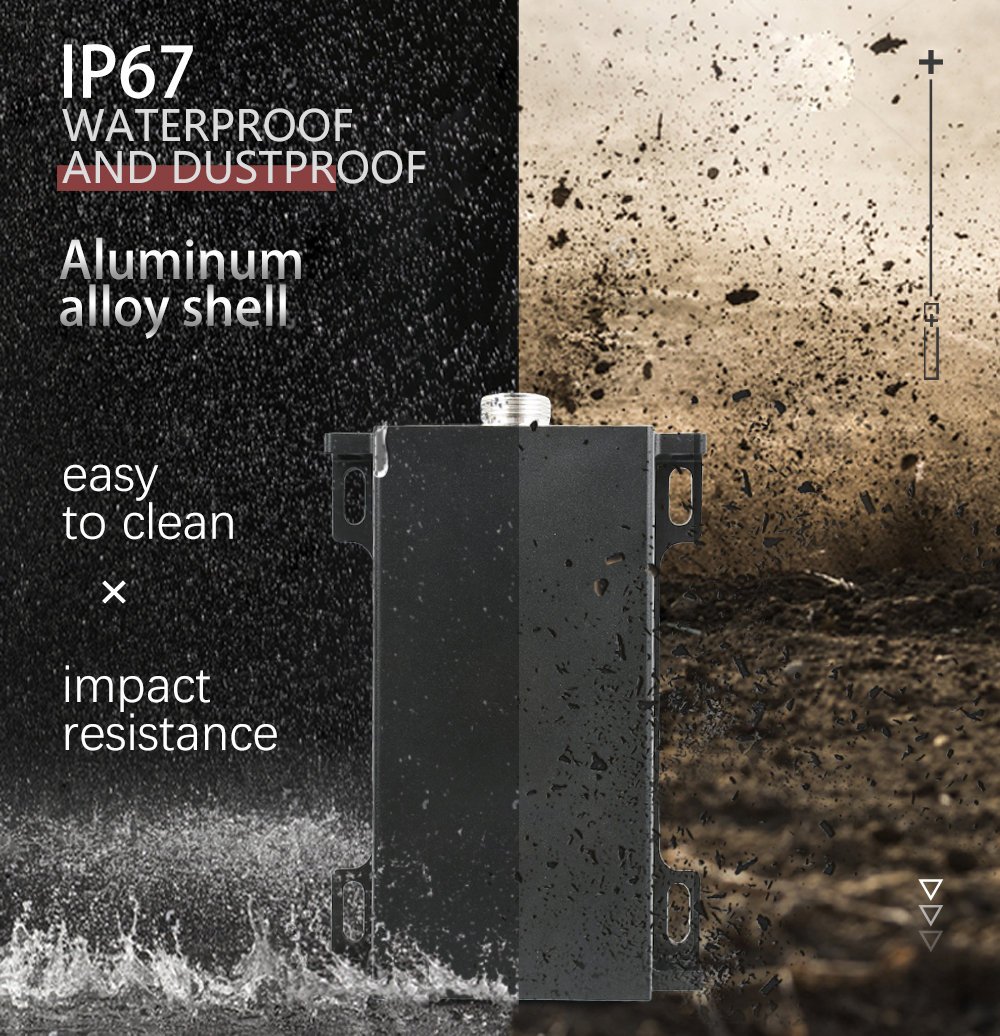

2. Arduino Distance Measurement

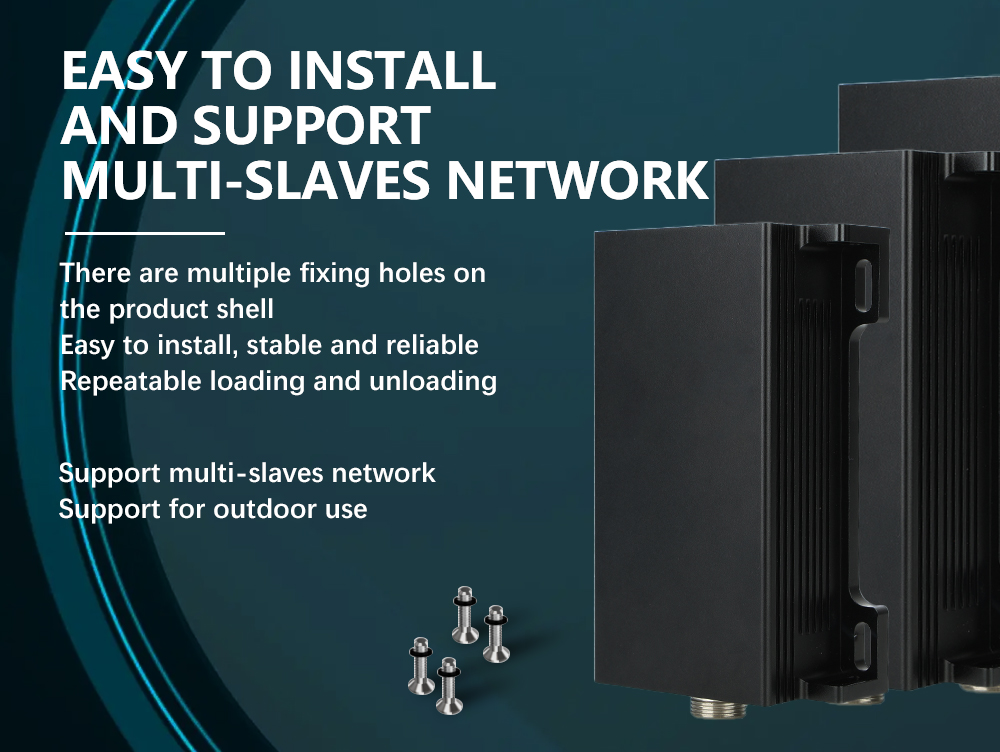

3. Contactless Distance Measurement

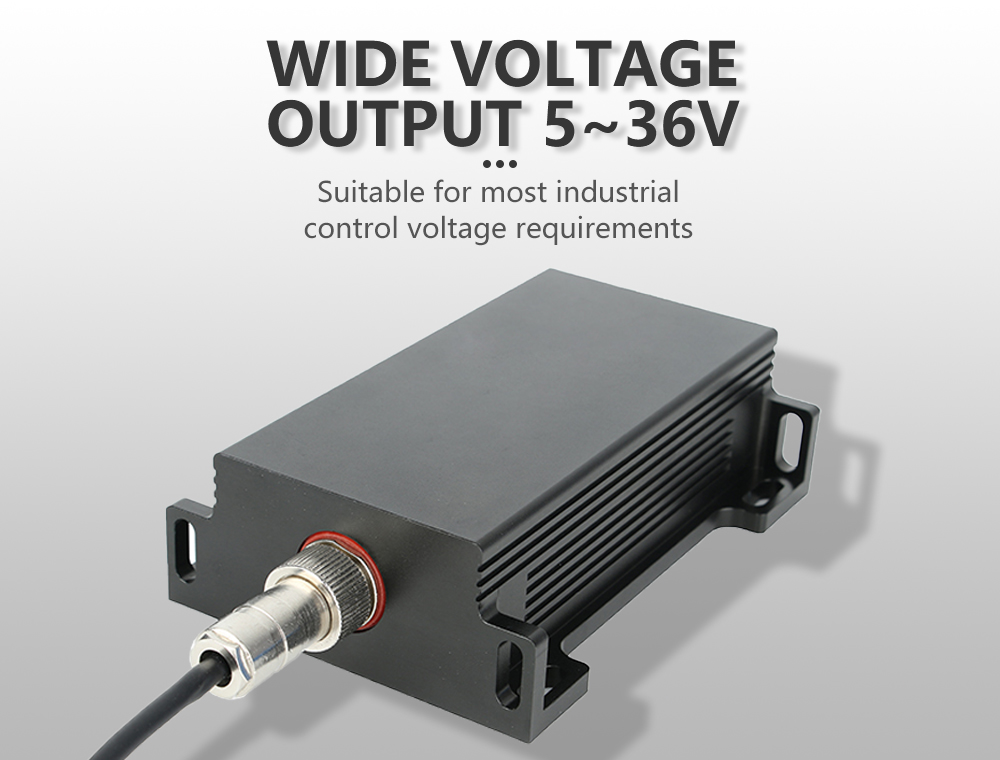

4. Distance Measurement Using Laser Sensor

Parameters

Model J92-IP67
Measuring Range 0.03~100m
Measuring Accuracy ±3mm
Laser Grade Class 2
Laser Type 620~690nm,<1mW
Working Voltage 6~36V
Measuring Time 0.4~4s
Frequency 3Hz
Size 122*84*37mm
Weight 515g
Communication Mode Serial Communication, UART
Interface RS232(TTL/USB/RS485/ Bluetooth can be customized)
Working Temperature -10~50℃(Wide temperature can be customized, Suitable for more harsh environments)
Storage Temperature -25℃-~60℃

Application

Laser range finder sensor is widely used in drones, robots, building measurement, warehousing and logistics, intelligent transportation, material level control, object measurement, position monitoring, deformation and displacement measurement and other occasions.

Precautions

J-series distance ranging sensor is an optical laser instrument whose operation is affected by the operating environmental conditions. Therefore, the range and accuracy that can be achieved in the application are different. The following conditions may affect the measurement:
The color of the target surface, from white to black, gets worse;
The target surface is uneven;
The presence of particles in the environment: such as dust, fog, heavy rain, blizzard;
strong light exposure;

Other notes:
Please do not measure on the surface of transparent objects, such as colorless liquids (such as water) or glass (dust-free);
Measurements can only be performed when the target area is large enough to accommodate the laser spot;
If you are still not sure, please contact us to learn more.

FAQ

1. What’s the MOQ of Seakeda measuring sensor?
Regular products only 1pcs, OEM/ODM products can be negotiated.

2. What’s the laser class of Seakeda laser sensors?
Our laser distance transducer are visible safe laser class 2, we also have invisible eye safe laser class 1.

3. Can Seakeda team make fast shipping after payment?
Sure, for standard sample, Seakeda will make shipment within 3 days and always choose reliable Express, such as DHL, Fedex, UPS, TNT....
